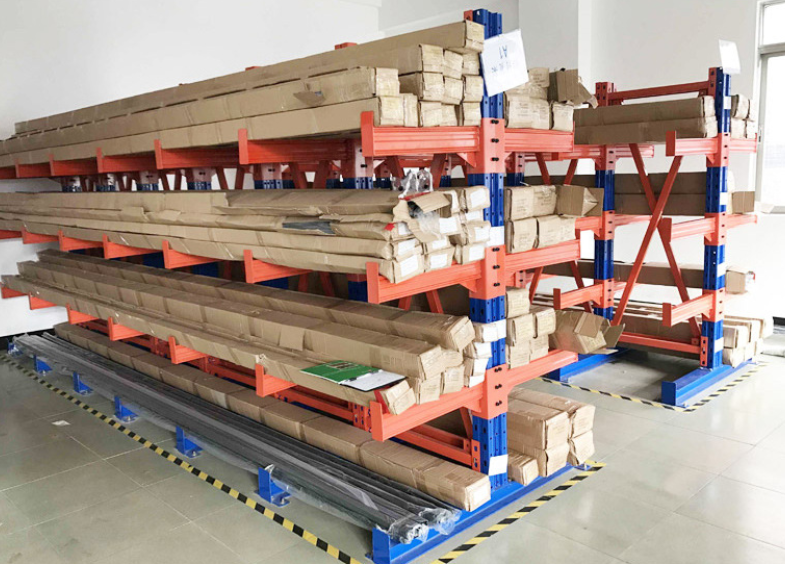

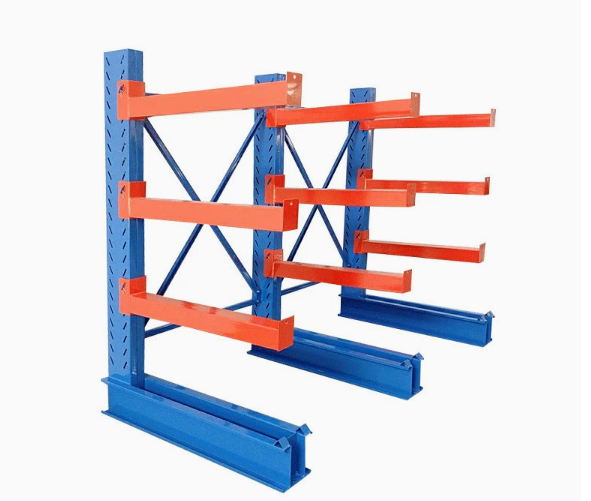

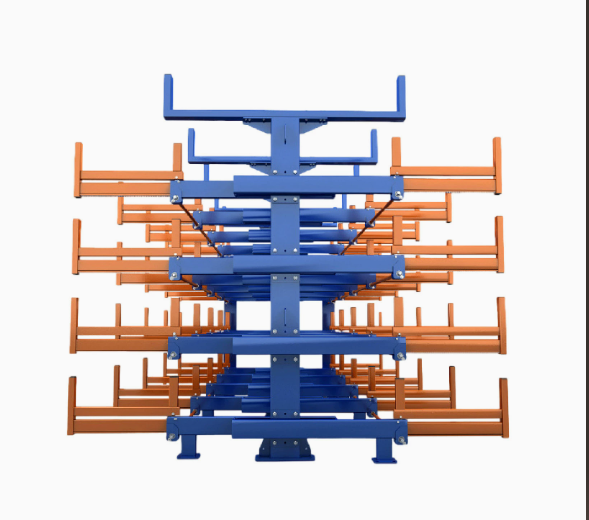

Heavy-Duty Cantilever Racking Systems
The ultimate storage solution for long, bulky, and irregular materials like timber, steel pipes, and extrusions. Maximize your warehouse vertical space with unobstructed access.
- ✓ Single & Double-Sided Configurations
- ✓ High-Grade Structural Steel (Q235/Q345)
- ✓ Customized Arm Lengths & Capacities
Technical Specifications
Column Height
Up to 12,000 mm
Arm Length
600 mm - 2,500 mm
Load Capacity
500 kg - 2,500 kg / Arm
Material Finish
Powder Coated / Hot-Dip Galvanized
System Components
- Base & Column: Heavy-duty bolted construction ensuring maximum stability.
- Adjustable Arms: Pitch adjustable every 100mm/75mm to accommodate varying load heights.
- Bracing: Horizontal and diagonal X-bracing to provide longitudinal stability.
